      Lavu POS with Verifone

      This article will take you through the process for using the Verifone e285 reader with your Lavu POS.

      Lavu POS Integration with Verifone


      Lavu POS is newly equipped with the latest payment gateway partnering with Verifone.

      If you have chosen to partner with Lavu and this new gateway, the Lavu Onboarding team will ensure your company account is integrated and configured for this setup.

      Below is an example of an account after enabling the Verifone payment gateway.

      verifone_settings1

      Connect the Verifone Card Reader to Wifi


      Once you have been onboarded, the next step is to connect your Verifone reader to your Wifi network. Follow the steps below:


      1. Press the 1, 5, and 9 key at the same time to bring up the menu.
      2. Tap Com Control.
      3. Tap Configuration.
      4. Tap More.
      5. Tap Configuration.
        1. If you are prompted for a password, type in 200331
      6. Tap Wifi Scan.
      7. Select your Wifi network, and tap Add.
      8. Tap Pre-Shared_Key (PSK) and type in your wifi password
      9. Tap Save.
      10. Select Yes to apply the new settings

      Connect the Verifone Card Reader to your POS

      Once the reader is connected to your network, you can pair the Verifone reader with a POS iPad in two ways.


      • Scan for Terminal
      1. Using the IP address

      pair_options_both

      • Scan Terminals

      Log into the Lavu POS app, and tap the menu button in the bottom left corner.

      verifone_menu_button

      Tap on Settings, then tap on Card Reader Settings.


      verifone_card_reader_settings

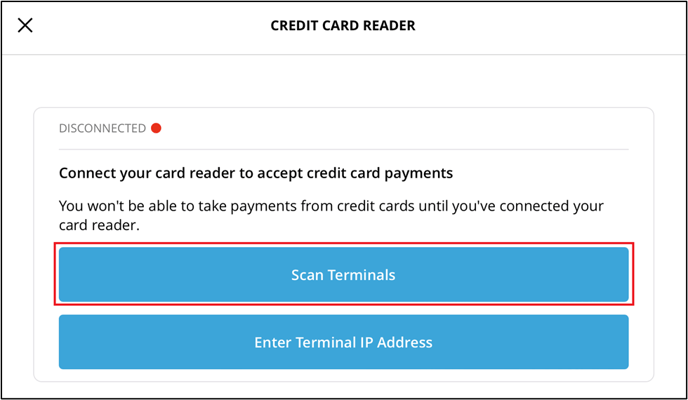

      Tap on Scan Terminals.


      verifone_scan_terminals


      The POS will then start to scan your local network for any Verifone readers. This process can take several minutes to complete.


      verifone_scanning


      After completing the scan, the POS will display any available readers. Select the reader you want to connect to in order to complete the pairing process.

      • Using the IP Address


      A faster method to connect to your Verifone reader is through its IP address. Before that, you should learn the IP address of the card reader. There are two ways to get the Verifone card reader’s IP address.


      1. Turn the reader off and back on, and read the IP address during the bootup process.
      2. Find the IP address under network settings.

      Follow the below steps to identify the IP address from the Verifone card reader.


      Press the numbers 1, 5 & 9 together on the Verifone card reader to open the settings screen.


      Once the settings screen gets open, tap on “Com Control.”


      verifone_com_control


      After that, you will arrive on the Communication Panel screen. Tap on WiFi.


      verifone_wifi


      After that, tap on Status and find the IP address. Note down the IP address to enter on the POS while pairing.


      Back on the POS, tap the menu button in the bottom left corner.


      verifone_menu_button


      Tap on Settings, then tap on Card Reader Settings.


      verifone_card_reader_settings


      The credit card reader window will open. Tap on Enter Terminal IP Address.


      verifone_select_ip


      Enter the IP Address you got from the previous steps, and click on the green button to continue.


      verifone_enter_ip

      The POS will then display a 4-digit Terminal Passcode. Enter this passcode on the Verifone card reader.


      verifone_passcode

      This will complete the pairing process with the iPad.


      Note: If you want, you can unpair the iPad from the card reader by selecting Unassign from Card Reader Settings. This can be used to troubleshoot if the card reader is not reading the cards properly.


      For any further support, please reach out to our 24/7 customer support team at 505-535-5288 or email support@lavu.com.
